Multi-Input Multi-Output Wire Connectors: A Practical Solution for Efficient Electrical Wiring

1. Making Multiple Wire Connections More Convenient

In electrical installations, one connection point may need to accommodate several wires. Lighting systems, control cabinets, electrical equipment and maintenance projects often require multiple conductors to be connected within a limited space. Using separate connectors for every connection can make wiring more complicated and increase the time needed for installation.

Multi-input multi-output wire connectors offer a practical alternative for organizing these connections. By providing several wire-entry positions in one compact housing, they help installers arrange conductors more neatly and keep related wiring together.

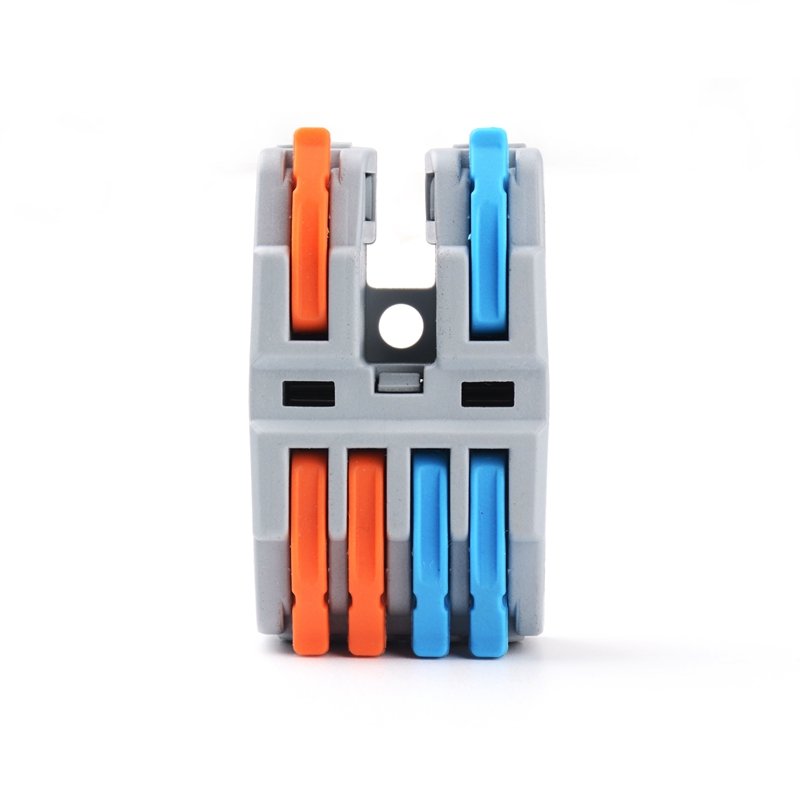

The JINH wire connector shown here features multiple front-facing wire-entry openings and a compact body. Its multi-position design is intended for wiring tasks where several conductors need to be connected through an appropriate electrical connection arrangement. The exact connection configuration depends on the internal design of the selected model.

2. A Multi-Position Design for Flexible Wiring Layouts

A useful wire connector should do more than join conductors. It should also help make the overall wiring arrangement easier to understand and maintain.

With multiple wire-entry positions, a multi-input multi-output connector can help organize several conductors in one location instead of spreading connections across multiple separate components. This can be particularly useful in compact electrical assemblies, where available installation space is limited.

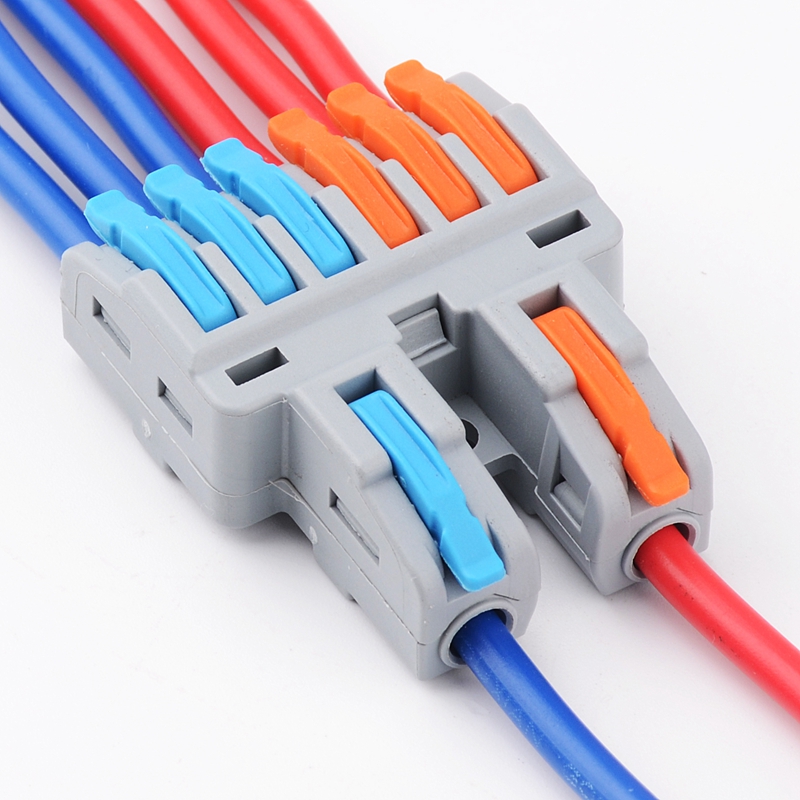

The JINH product features a grey housing with orange and blue operating levers. The contrasting colours make the operating components easier to distinguish visually during installation. The multiple openings also provide a clear view of the available wire-entry positions.

For applications involving different circuits or conductor groups, installers should select the correct connector configuration and follow the product wiring diagram. The number of openings alone does not determine whether all positions share the same electrical potential.

3. Orange and Blue Levers for Convenient Operation

During installation or maintenance, clear operating features can make a connector easier to handle. The JINH connector uses visible orange and blue levers to distinguish its operating components.

Lever-operated wire connectors are commonly selected for applications where convenient conductor insertion and removal are important. Depending on the specific model, the operating lever may be used to open or release the conductor clamping mechanism.

Before making a connection, installers should check the conductor type, wire size range and applicable stripping length specified for the selected product. Each wire should be inserted correctly, and the connection should be checked before the electrical system is energized.

4. Applications in Lighting, Control Cabinets and Electrical Equipment

Multi-input multi-output wire connectors can be considered for a variety of electrical wiring tasks, provided the product's rated specifications and wiring configuration match the application.

Typical application areas may include:

• Lighting installations: Organizing conductors in suitable lighting connection arrangements.

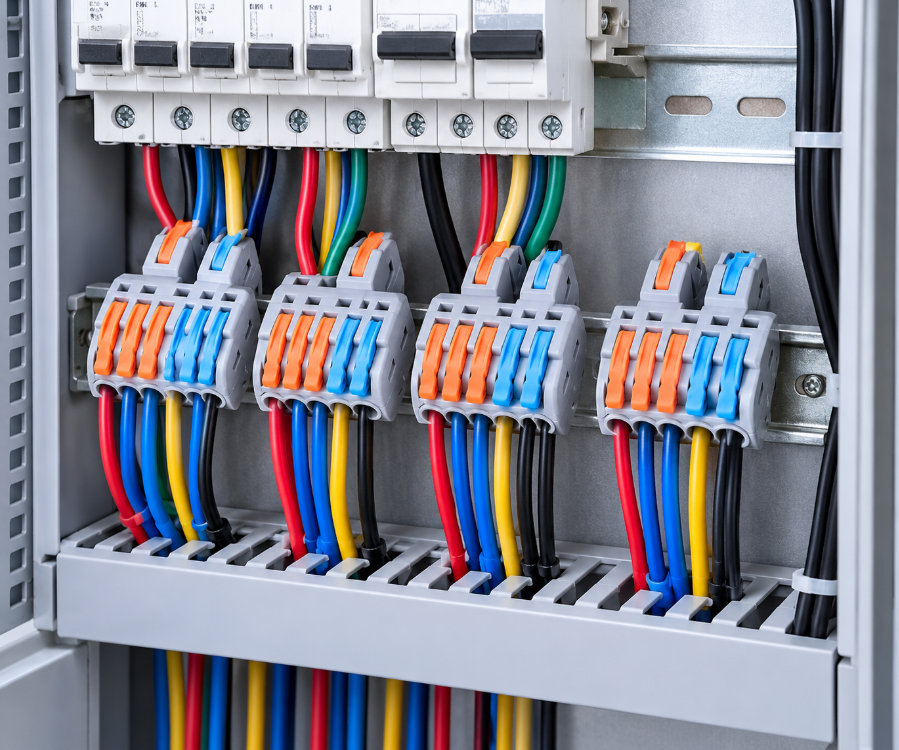

• Electrical control cabinets: Keeping related wiring connections organized within control assemblies.

• Electrical equipment: Connecting conductors in equipment assemblies where the selected connector is compatible with the circuit.

• Building electrical maintenance: Helping technicians arrange and inspect wiring connections during installation or repair.

The appropriate connector should always be selected according to the required voltage, current, conductor size, conductor type, ambient conditions and applicable electrical standards. Waterproofing or other environmental protection should not be assumed unless it is specifically confirmed for the selected model.

5. What to Check Before Selecting a Wire Connector

Choosing a connector based only on its appearance or number of wire-entry openings may lead to an unsuitable application. Before ordering, buyers and installers should confirm several important details.

First, check the number of poles and the internal connection arrangement. A connector with several openings may have different internal configurations depending on the model. Confirm the wiring diagram to determine which positions are electrically connected.

Second, verify the supported conductor types and wire cross-sections. Solid and stranded conductors may have different requirements, and not every connector supports every wire type.

Third, review the rated voltage, rated current, operating temperature and applicable certification information. These specifications should match the intended electrical system and local requirements.

Finally, consider the available installation space, the preferred operating method and the quantity required for the project. Providing these details to the supplier can help ensure that the selected model matches the actual wiring task.

6. JINH Wire Connectors for Practical Wiring Needs

JINH focuses on electrical connection products for a range of wiring and equipment applications. For customers looking for multi-input multi-output wire connectors, selecting the correct model starts with understanding the number of conductors, the required electrical configuration and the installation environment.

When requesting product information, buyers can provide the intended application, conductor size, required number of connection positions and relevant electrical ratings. These details help the supplier recommend a suitable product and provide the corresponding technical information.

Whether the project involves lighting, electrical equipment or control wiring, a well-selected multi-position wire connector can help keep connections organized and make the wiring layout easier to manage.

Contact JINH to discuss your wiring requirements and identify a suitable connector configuration for your project.
