Waterproof Junction Boxes: A Practical Solution for Organized Electrical Connections

Why Is a Waterproof Junction Box Important?

Electrical wiring often involves multiple cables that need to be connected, organized, and protected. In outdoor installations and other environments exposed to moisture, dust, or changing weather conditions, choosing an appropriate junction box is an important part of planning a reliable electrical system.

A waterproof junction box provides an enclosure for electrical connections, helping keep wiring organized and reducing exposure to environmental conditions when the product is correctly selected and installed. It can also make cable routing easier to manage, especially in projects where several cables enter or leave the same enclosure.

However, not every junction box offers the same level of protection. Actual performance depends on the enclosure design, sealing components, cable entry arrangement, installation method, and specified protection rating. Understanding these factors before purchasing can help buyers select a product that matches their project requirements.

Key Design Features of a Multi-Port Junction Box

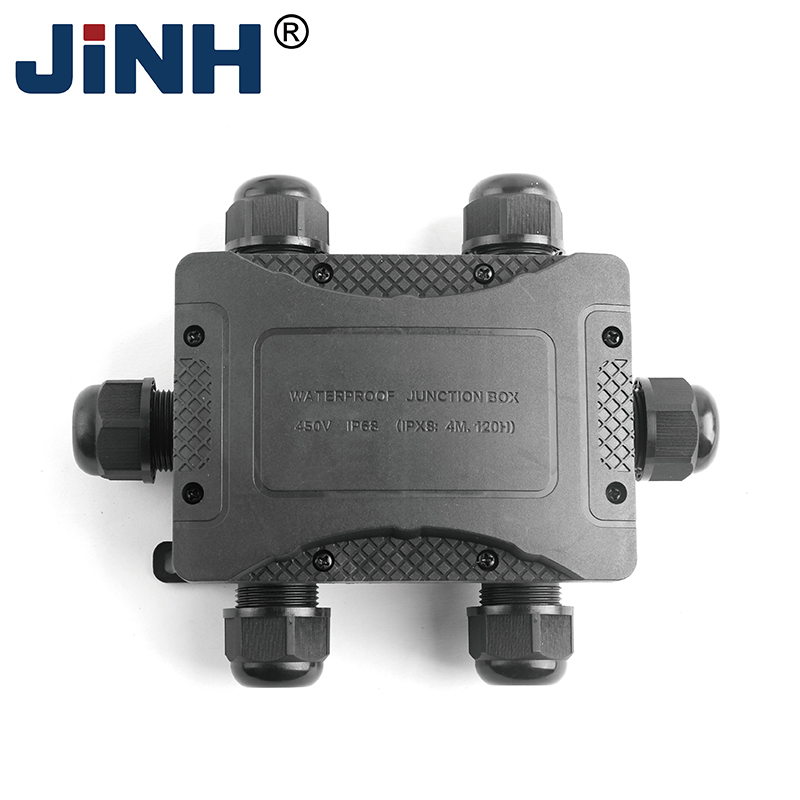

The JINH junction boxes shown in the product image feature black rectangular enclosures and multiple cable-entry points. Different visible configurations suggest that the product range may accommodate different wiring layouts. The exact number of ports, internal connection structure, and available models should be confirmed against the product specifications.

1. Enclosed Design for Electrical Wiring

The enclosure provides a dedicated space for cable connections, helping keep wiring components together rather than leaving connections exposed. A suitable enclosure can also make an installation look neater and help simplify cable management during assembly and maintenance.

When selecting a box, buyers should consider its dimensions, mounting arrangement, internal space, and compatibility with the intended wiring components.

2. Multiple Cable Entry Options

Multi-port designs can be useful when several cables need to be routed through one enclosure. Depending on the actual model, different entry arrangements may support different installation layouts and help reduce the need for separate connection points.

Before ordering, check the number and position of the cable entries, the supported cable diameters, and whether the selected model is suitable for the planned wiring arrangement.

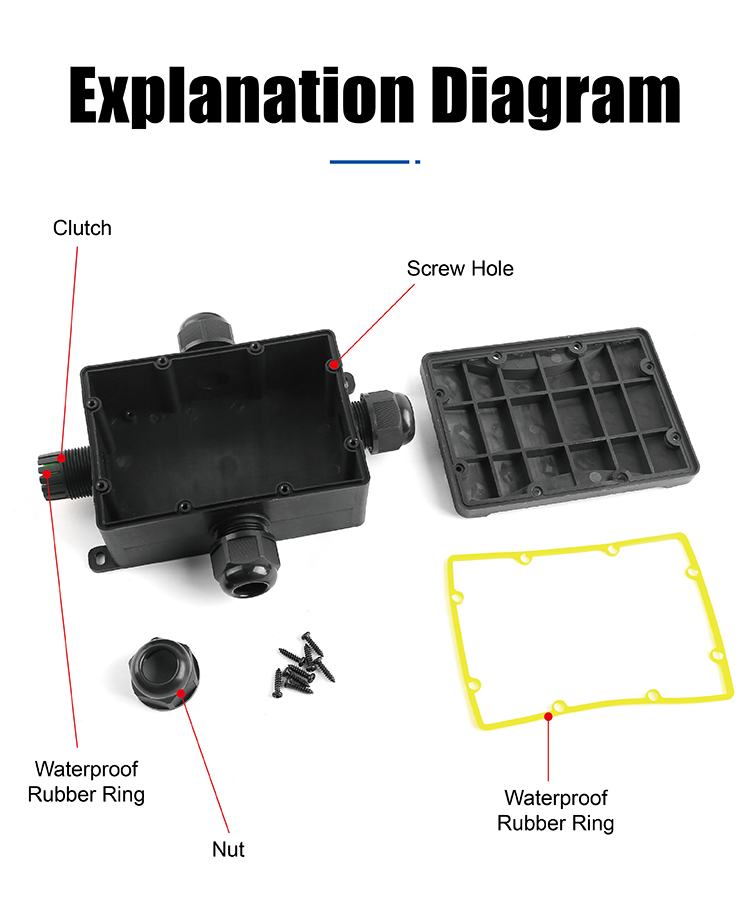

3. Housing and Sealing Compatibility

A junction box's protective performance depends on more than its outer housing. Cable glands, seals, covers, fasteners, and correctly prepared cable entries may all affect the final installation.

For outdoor or moisture-prone applications, confirm the specified IP rating and follow the manufacturer's installation instructions. Do not assume that a product is suitable for immersion or continuous exposure to water unless its documentation explicitly supports that use.

Where Can Waterproof Junction Boxes Be Used?

The appropriate application depends on the product's verified protection rating, electrical requirements, and installation conditions. Common areas to evaluate include the following.

Outdoor Lighting Systems

Outdoor lighting projects may require connections between power cables, light fixtures, and other electrical components. A suitable junction box can help keep these connections organized and provide an enclosure designed for the installation environment.

Examples include garden lighting, landscape lighting, and certain building exterior lighting systems, provided the selected model meets the relevant requirements.

Industrial and Equipment Wiring

Machinery and electrical equipment can involve several cables routed between components. A multi-port junction box may help organize these cable connections and support a more structured wiring layout.

Before use, verify compatibility with the equipment, cable sizes, operating conditions, and any applicable electrical safety requirements.

Building and General Electrical Installations

In suitable installations, junction boxes can be used to organize cable connections in building services, utility areas, and other electrical projects. The choice of enclosure should reflect whether the location is indoors or outdoors, the possibility of moisture or dust exposure, and the relevant installation regulations.

How to Choose the Right Waterproof Junction Box

Before placing an order, buyers and installers should check several practical details.

• Protection rating: Confirm the documented IP rating and whether it matches the expected exposure to dust and water.

• Cable entry configuration: Check the number, position, and size of cable entries required for the project.

• Electrical compatibility: Verify the applicable voltage, current, conductor size, and internal connection method where relevant.

• Installation environment: Consider indoor or outdoor placement, temperature, sunlight, moisture, and other environmental factors.

• Mounting and dimensions: Make sure the enclosure fits the installation space and can be securely mounted.

• Compliance and documentation: Request the relevant technical datasheet, test information, and certifications where required.

• Assembly requirements: Follow the manufacturer's instructions for cable preparation, sealing, tightening, and enclosure closure.

These checks can help reduce selection errors and make it easier to compare products from different suppliers.

What Should Buyers Confirm Before Ordering?

Product photographs are useful for understanding the enclosure's general appearance, but they do not replace technical documentation. For a new junction box, buyers should request the model number, dimensional drawing, cable-entry details, internal connection configuration, material information, and confirmed protection rating.

If the product is intended for a specific project, sharing the cable specifications, installation environment, and required certifications with the supplier can make the selection and quotation process more efficient.

JINH: Electrical Connection Products for Different Applications

JINH supplies electrical connection products for distributors, contractors, and equipment manufacturers. For buyers evaluating waterproof junction boxes, confirming the required configuration and application conditions is an important first step toward finding a suitable solution.

Whether the project involves outdoor lighting, equipment wiring, or general electrical installations, selecting a junction box based on verified specifications helps ensure that the product matches the intended use. Buyers can contact JINH to discuss available models, product details, and customization requirements.

A well-planned cable connection starts with the right enclosure, suitable components, and correct installation. By considering these factors together, project teams can create a more organized and maintainable electrical wiring system.
