push connector electrical CMK252
This connector is suitable for worldwide installations.

• Connecting solid, stranded and fine-stranded conductors from 0.75 to 2.5mm² in the feedthrough direction
• Slim design minimizes dimensions for installation in tight spaces
• Tool-free connection and disconnection
• Choosing between fixed-position installation

---

Electrical data
Nominal voltage	450V
Rated current	24A
Connection data
Total number of connection points	2
Connection 1
Actuation type	Push in
Connectable conductor materials	Tinned Copper
Solid conductor	0.75 … 2.5mm²
Stranded conductor	---
Fine-stranded conductor	---
Strip length	11 mm / 0.43 inches

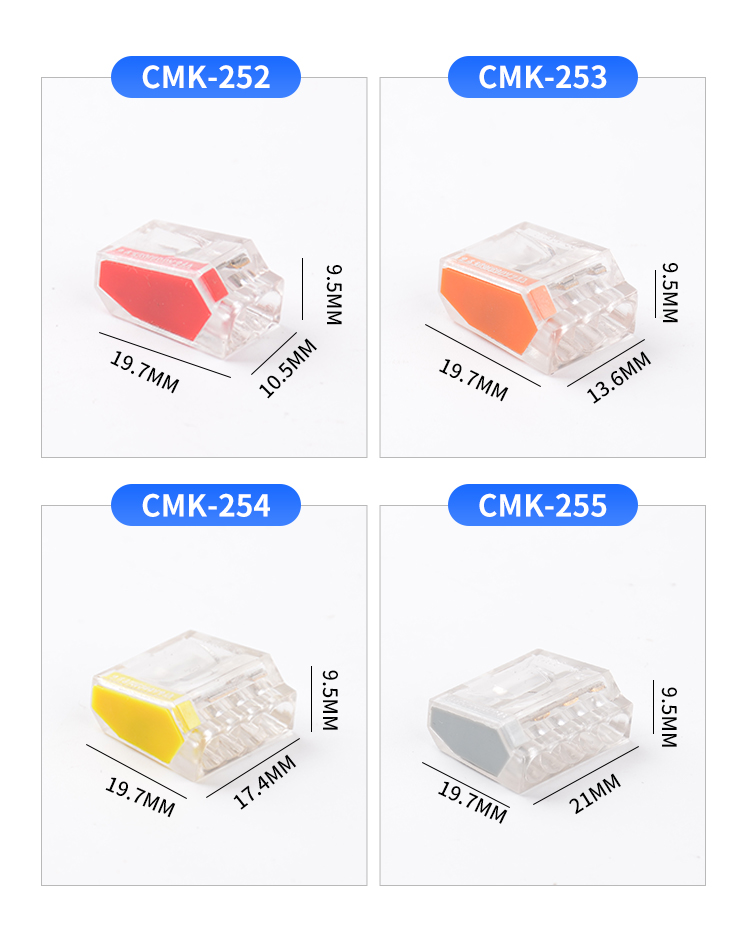

Physical data
Width	10.5mm
Height	9.5mm
Depth	19.7mm
Material data
Color	Red
Cover color	transparent
Insulation material	polycarbonate
insulation material	AISI 301 Stainless steel
Environmental requirements
Continuous operating temperature	-40 to 85 degree
