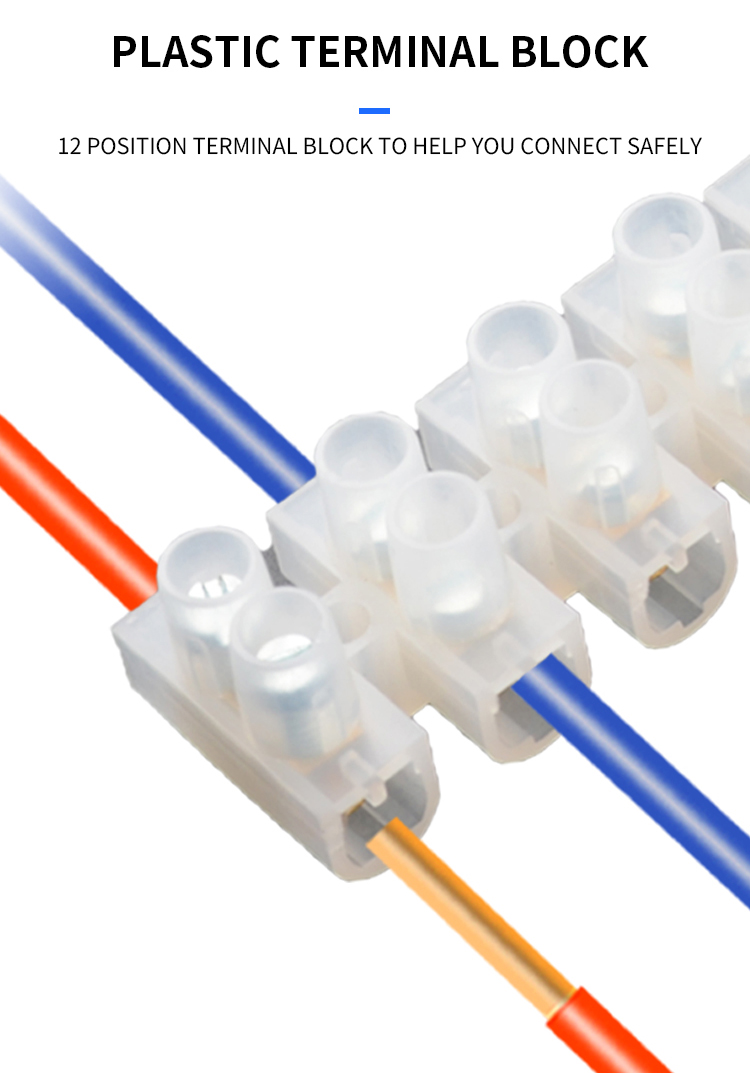

12 way connector strip
Terminal blocks used as a component in lighting or electrical devices or to make electrical installations.
Terminal strip used for making electrical connections with copper conductors in electrical installations and lighting and electrical equipment.
This series has been designed considering the user's requirements.

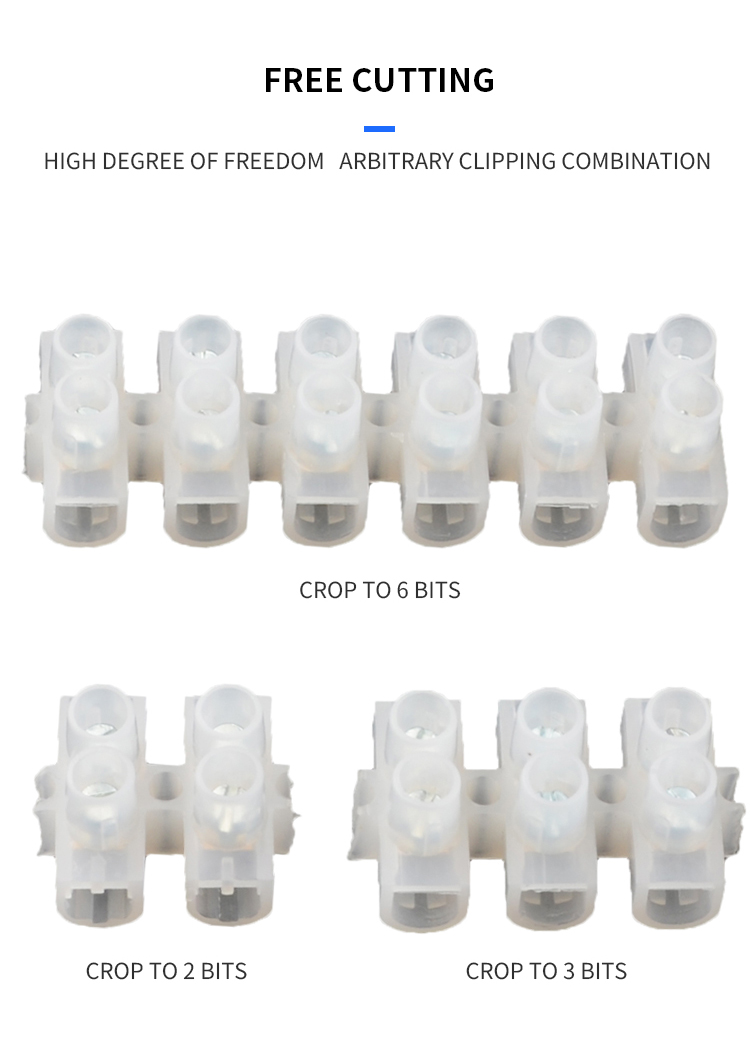

Available pre-cut and printed upon request.

---

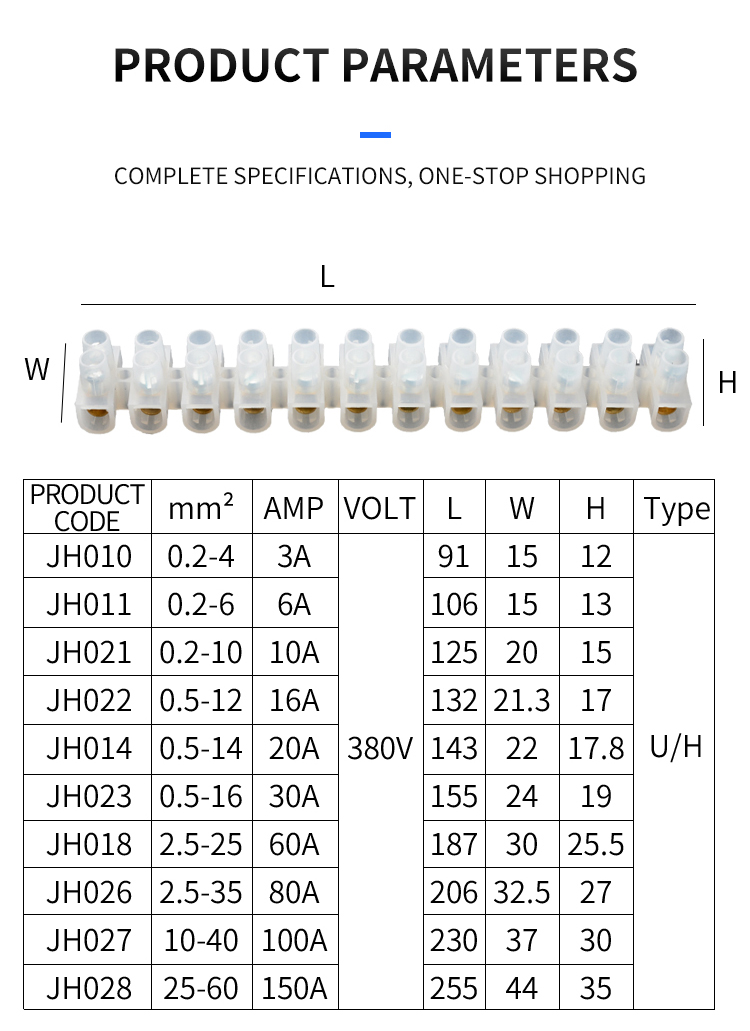

Connection capacity:

- Solid/Flexible cable: 4 mm² -60mm²

Voltage: 380V
Ampere:3A-150A

Temperature:
PE,Polyethylene -40ºC~65ºC
PP,Ploypropylene -20ºC~90ºC
PA,Polyamide 66 -30ºC~85ºC

Constructive:

- Standard model: 12 poles.
- Models with a smaller number of poles available.
- Terminal strips can be printed on request.

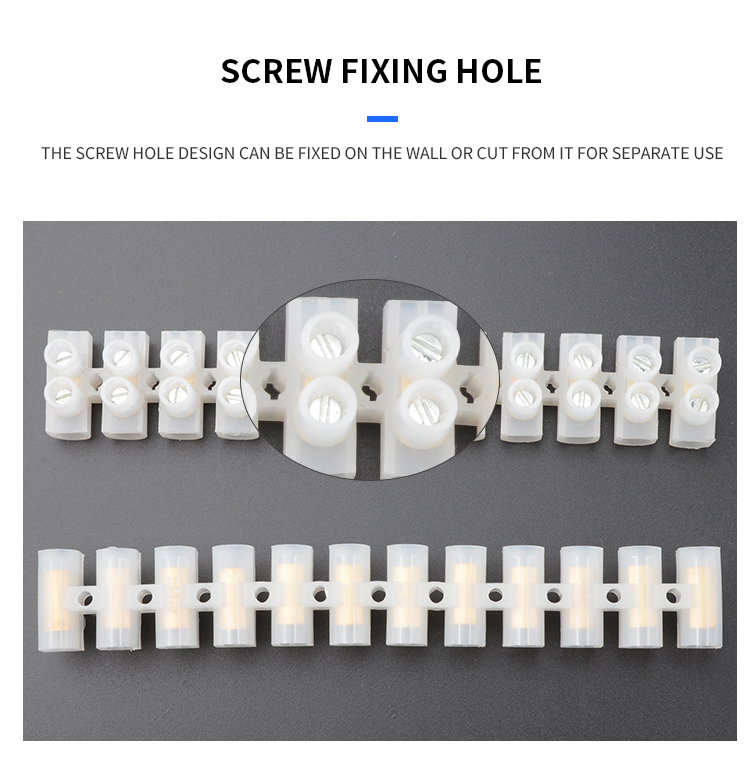

- Captive screws.

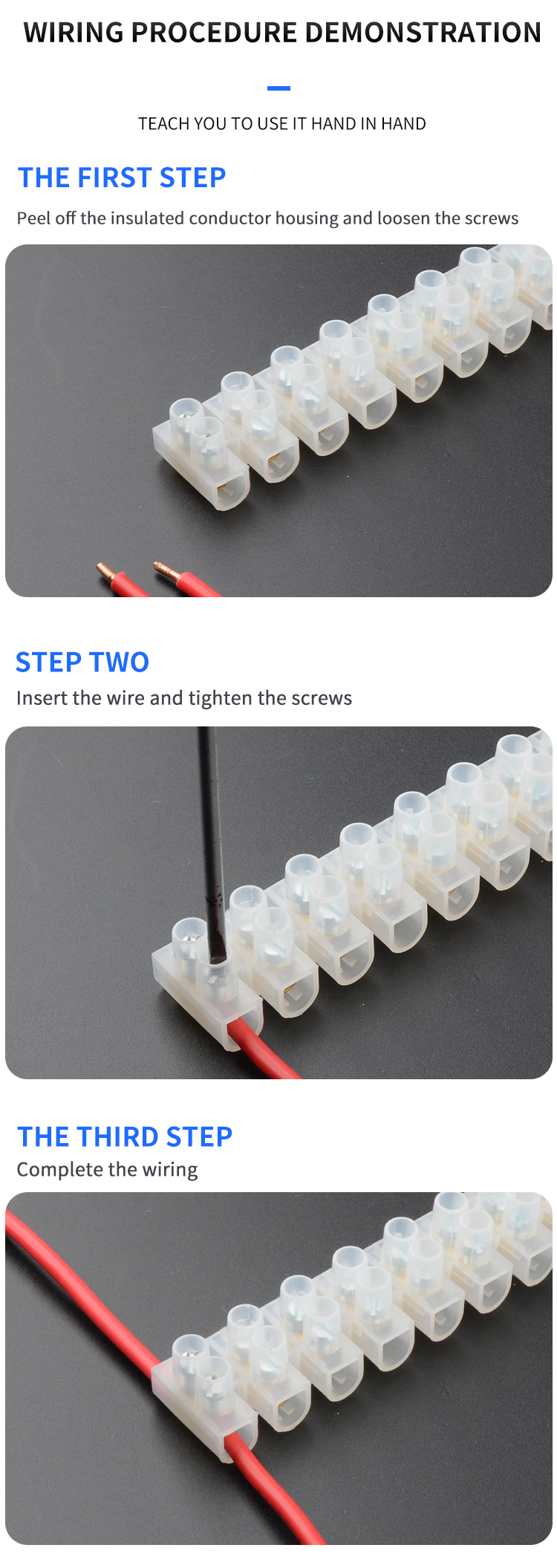

- Raised screws, providing an easier insertion of the conductor.
