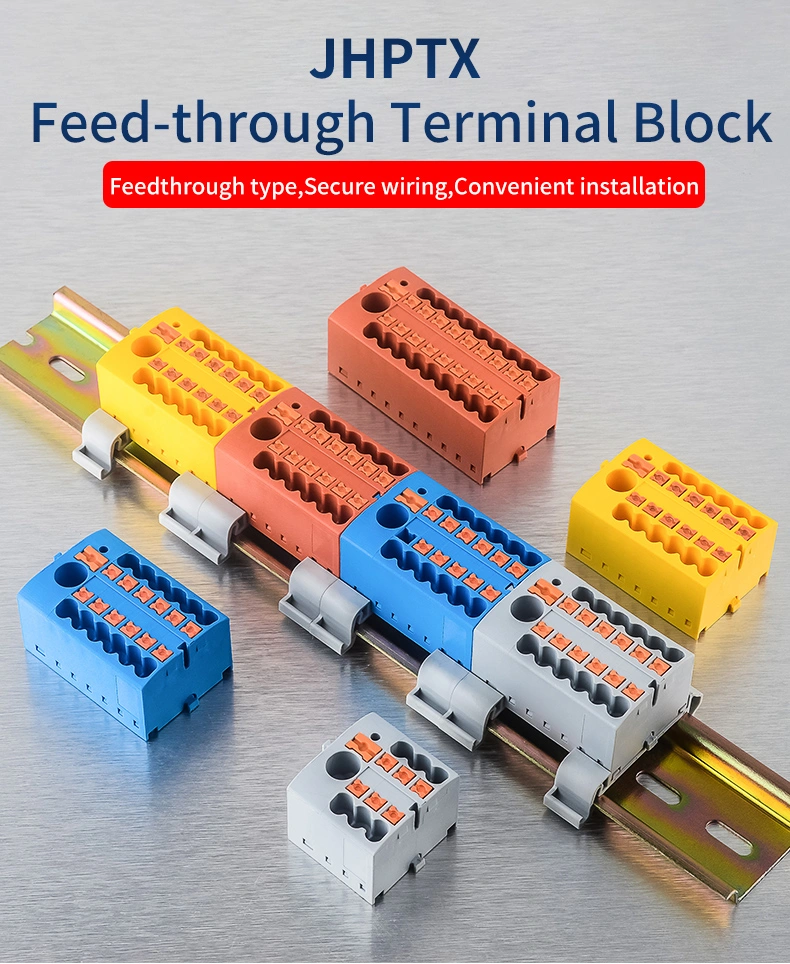

Din Rail Distribution Block
JHPTX6/12-2.5
Din Rail Distribution Block
Designed for various installation environments worldwide. Whether in industrial settings, commercial buildings, or aerospace applications, our power distribution blocks excel. They efficiently distribute electricity from main power sources or main lines to multiple terminal devices or circuits, ensuring optimal energy utilization. Convenient to install, customizable, they provide secure electrical connections to prevent circuit overloads, short circuits, ensuring safety for both environment and personnel. Crafted from high-quality materials and craftsmanship, they guarantee long-term stable power distribution, reducing maintenance costs and risks while preventing energy wastage and enhancing energy efficiency.
Designed for various installation environments worldwide. Whether in industrial settings, commercial buildings, or aerospace applications, our power distribution blocks excel. They efficiently distribute electricity from main power sources or main lines to multiple terminal devices or circuits, ensuring optimal energy utilization. Convenient to install, customizable, they provide secure electrical connections to prevent circuit overloads, short circuits, ensuring safety for both environment and personnel. Crafted from high-quality materials and craftsmanship, they guarantee long-term stable power distribution, reducing maintenance costs and risks while preventing energy wastage and enhancing energy efficiency.
Quantity
Din Rail Distribution Blocks are essential components used in electrical systems to distribute power and organize wiring in a compact and efficient manner.
- Definition: A Din Rail Distribution Block is a modular device mounted on a standard DIN rail, which is used to distribute electrical power from a single input to multiple outputs.
- Usage: These blocks are commonly found in industrial control panels, automation systems, and other electrical installations where organized and efficient power distribution is required.
Mounting methods
- Installed along the direction of the DIN rail on the NS35 DIN rail
| Type | Current Input Port | Current Output Port | Voltage | PIN | Metal | Dimensions(mm) |
| JHPTX 6/6X2.5 | 41A | 24A | 690V | 6 | PA | 28.6*25.6*21.7 |
| JHPTX 6/12X2.5 | 41A | 24A | 690V | 12 | PA | 28.6*41*21.7 |
| JHPTX 6/18X2.5 | 41A | 24A | 690V | 18 | PA | 28.6*56.5*21.7 |
| Type | Current | Voltage | PIN | Metal | Dimensions(mm) |
| JHPTX 6X2.5 | 24A | 450V | 6 | PA | 28.6*16* 21.7 |
| JHPTX 12X2.5 | 24A | 450V | 12 | PA | 28.6*31.5*21.7 |
| JHPTX 18X2.5 | 24A | 450V | 18 | PA | 28.6*46.9*21.7 |
