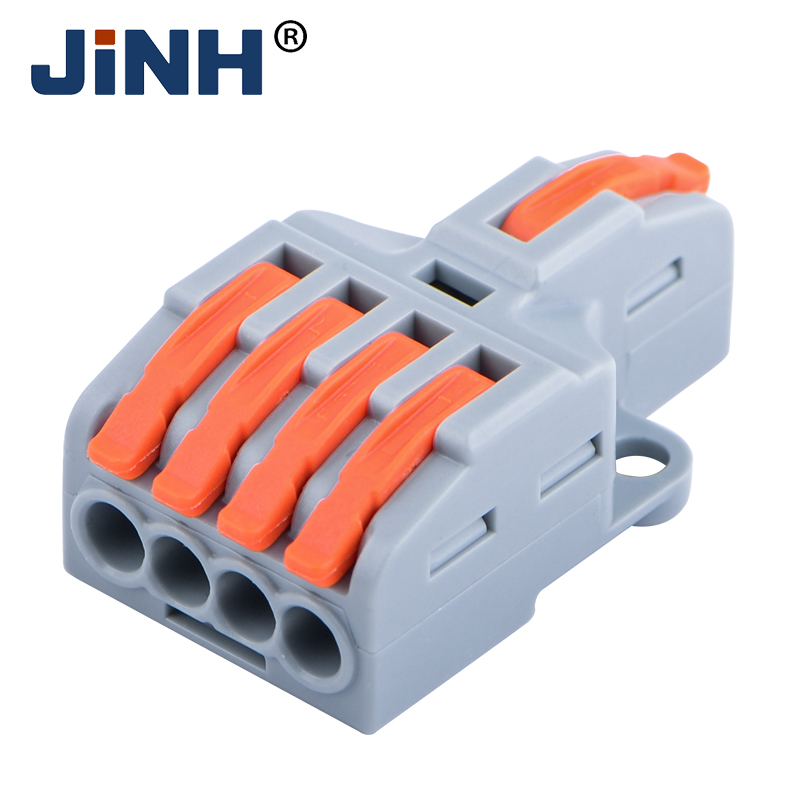

Push In Wire Connector
CMK421-4C
This connector is suitable for worldwide installations.
Connecting solid, stranded and fine-stranded conductors from 0.08 to 4mm² in the feedthrough direction
Slim design minimizes dimensions for installation in tight spaces
Tool-free connection and disconnection thanks to convenient lever technology
Choosing between fixed-position installation and multi-pole installation with an adapter
Connecting solid, stranded and fine-stranded conductors from 0.08 to 4mm² in the feedthrough direction
Slim design minimizes dimensions for installation in tight spaces
Tool-free connection and disconnection thanks to convenient lever technology
Choosing between fixed-position installation and multi-pole installation with an adapter
Quantity
This connector is suitable for worldwide installations.
Connecting solid, stranded and fine-stranded conductors from 0.08 to 4mm² in the feedthrough direction
Slim design minimizes dimensions for installation in tight spaces
Tool-free connection and disconnection thanks to convenient lever technology
Choosing between fixed-position installation and multi-pole installation with an adapter
| Electrical data of lever nuts connector | |
| Nominal voltage | 450V |
| Rated current | 32A |
| Connection data of lever nuts connector | |
| Total number of connection points | 4 |
| Connection 1 | |
| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 4 mm² / 20 … 14 AWG |
| Stranded conductor | 0.08 … 2.5 mm² / 18 … 14 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 18 … 14 AWG |
| Strip length | 11 mm / 0.43 inches |
| Physical data of lever nuts connector | |
| Width | 22mm |
| Height | 41.6mm |
| Depth | 15.1mm |
| Material data of lever nuts connector | |
| Color | transparent |
| Cover color | transparent |
| Insulation material | PA66 |
| Actuator color | orange |
| insulation material | AISI 301 Stainless steel |
| Environmental Requirements | |
| Continuous operating temperature | |
| Product Name | Lever nuts |
