IP68 Waterproof Wire Connector
CNP295N
Model
CNP295N
JINH waterproof connector is designed to join electrical cables together with a reliable and simple operation, providing excellent strain relief and protection to your LED cables in wet and humid conditions, with an IP68 rating.
CNP295N
JINH waterproof connector is designed to join electrical cables together with a reliable and simple operation, providing excellent strain relief and protection to your LED cables in wet and humid conditions, with an IP68 rating.
Quantity

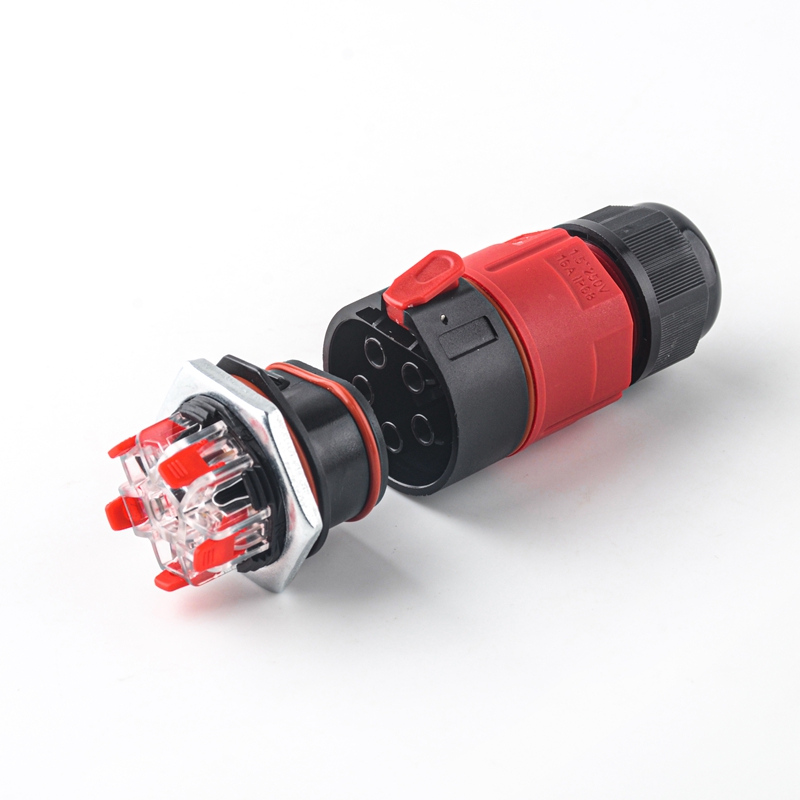

CNP295N Waterproof Wire Connector
The CNP295N is an upgraded version of the CNP295, supporting 5-pin circuits. It features an IP68 protection rating and a screwless connection design, enabling fast installation and maintenance. It is an ideal choice for complex industrial environments and high-demand outdoor applications.
| Electrical data of waterproof wire connector | |
| Rated voltage | 250V |
| Rated current | 16A |
| Connection data | |
| No.of circuits | 5P |
| Type of connection | Screwless |
| Connection wire | 0.5-1.5 mm² |
| Into the scope of line | Φ6-Φ11 mm |
| Physical data of waterproof wire connector | |
| Length | 140 mm |
| Width | 39 mm |
| Height | 39 mm |
| Material data of waterproof wire connector | |
| Color | Red |
| Insulation material | PA66 |
| Material of contact | Copper |
| Environmental requirements | |
| Working temperature | -40°C to 85°C |
| Certificate of waterproof wire connector | |
| certificate | TUV / CE / RoHS |
