IP68 Waterproof Quick Connect Wire Connectors
CNP293N
Model
CNP293N
JINH waterproof connector is designed to join electrical cables together with a reliable and simple operation, providing excellent strain relief and protection to your LED cables in wet and humid conditions, with an IP68 rating.
CNP293N
JINH waterproof connector is designed to join electrical cables together with a reliable and simple operation, providing excellent strain relief and protection to your LED cables in wet and humid conditions, with an IP68 rating.
Quantity

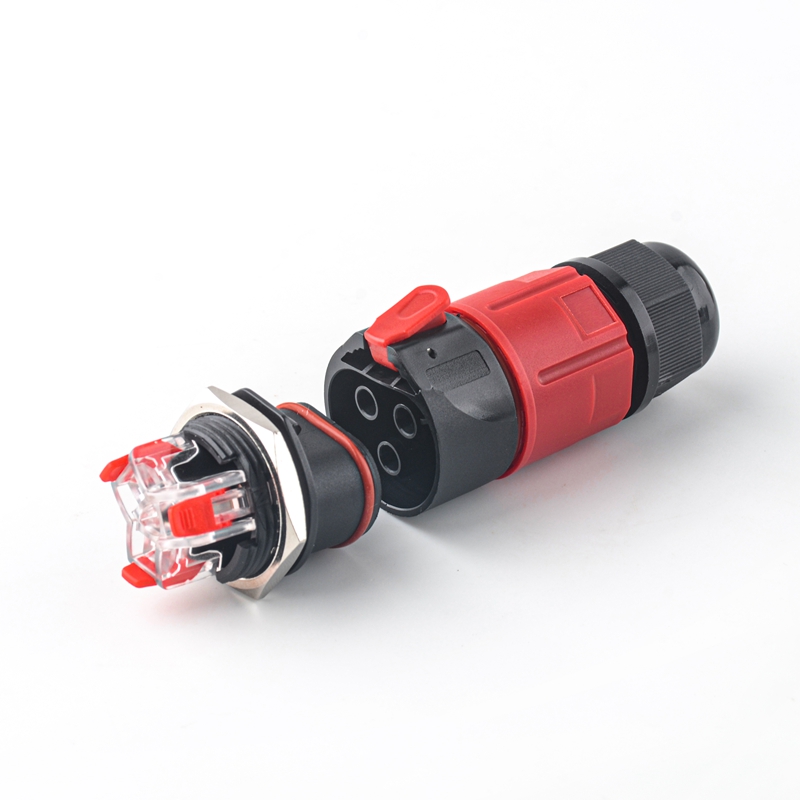

CNP293N Waterproof Quick Connect Wire Connectors
The CNP293N is an upgraded version of the CNP293. It supports 3-core circuits, features an IP68 protection rating, and adopts a screwless connection design. It is ideal for electrical connection scenarios requiring quick inspection and enhanced safety.
| Electrical data of waterproof quick connect wire connectors | |
| Rated voltage | 250V |
| Rated current | 16A |
| Connection data | |
| No.of circuits | 3P |
| Type of connection | Screwless |
| Connection wire | 0.5-1.5 mm² |
| Into the scope of line | Φ6-Φ11 mm |
| Physical data of waterproof quick connect wire connectors | |
| Length | 125 mm |
| Width | 33 mm |
| Height | 33 mm |
| Material data of waterproof quick connect wire connectors | |
| Color | Red |
| Insulation material | PA66 |
| Material of contact | Copper |
| Environmental requirements | |
| Working temperature | -40°C to 85°C |
| Certificate of waterproof quick connect wire connectors | |
| certificate | TUV / CE / RoHS |
