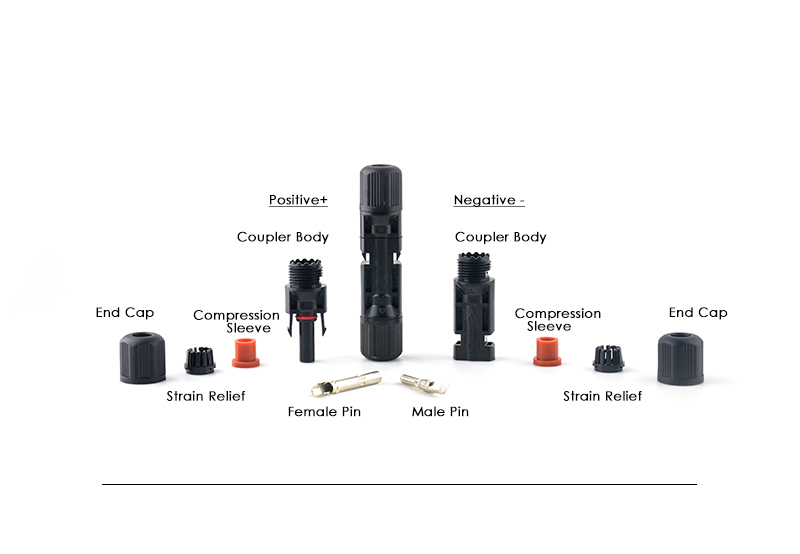

1000V 50A PV Connector

The 50A 1000V PV Connector is specifically designed for high-power photovoltaic systems. With a rated voltage of 1000VDC and a rated current of up to 50A, it supports cable sizes ranging from 4mm² to 6mm². Its high current carrying capacity and superior waterproof performance make it an ideal choice for high-current transmission in photovoltaic systems.

• Compatible with 800+ solar module connectors
• TUV approved & Quick and easy to install
• Protection class IP67 Suitable for outdoor harsh environments
• Stable connection & Reducing maintenance cost
• Free Sample is available

1000V 50A PV Connector

Rated voltage：1000V
Rated current:50A
Cable size:4mm²-6mm²

Contact material: Copper Alloy,tin plated
Insulation material:PC/PV
Ambient temp.range:-40℃~+90℃ (IEC)
Upper limiting temperature: +105℃(IEC)
Degree of protection(mated):IP67
Degree of protection,unmated:IP2X
Contact resistance of plug connectors:0.5mΩ
Locking system: Snap-in
